Manomètre de 627D01TDC1B MKS Baratron Profibus

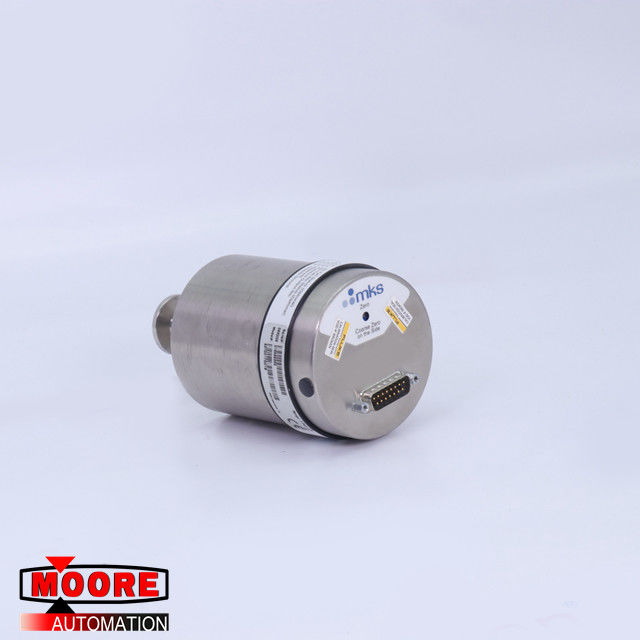

627D01TDC1B MKS Baratron Profibus Manometer

Product Details

Features

150°C or 200°C operating temperatures reduce contamination

0 to 10 VDC analog output proportional to absolute pressure

Two optional pressure trip relays for controlling external equipment

Inconel® sensor resists corrosion

Performance is unaffected by pressure bursts

Compact design & self-contained electronics save space

Specifications

Type: Pressure Transducer

Sensor Type: Capacitance Manometer

Measurement Type: Absolute

Full Scale Range: 1000 Torr

Sensor Temperature: 200°C

Accuracy: 0.50% of Reading

Fitting Type: 8 VCR female

Analog Output: 0 - 10 VDC

Analog Connector: 15-pin D-sub

Trip Relays: 0

Relay Mode: N/A

Resolution:0.01% of Full Scale

Zero Temperature Coefficient: 0.008% of Full Scale/°C (0.016% of Full Scale/°C for 1 Torr range)

Span Temperature Coefficien: t0.02% of Reading/°C

Response Time: 50 msec

Warm-up Time: 4 hours or less

Internal Volume: 6.3 cc

Operating Temperature Range: 15 - 50°C

Overpressure Limit: 45 psia

Exposed Materials: Inconel or Incoloy nickel alloys

Power Requirements: ± 15VDC (±5%) @ 1.0 amps max

Ambient Airflow Requirements: 150 ft/min for ambient temperatures of 40 - 50°C
