| Lieu d'origine | LES Etats-Unis |
| Nom de marque | AB |
| Certification | CO.CQ |
| Numéro de modèle | 1321-3RB250-B |

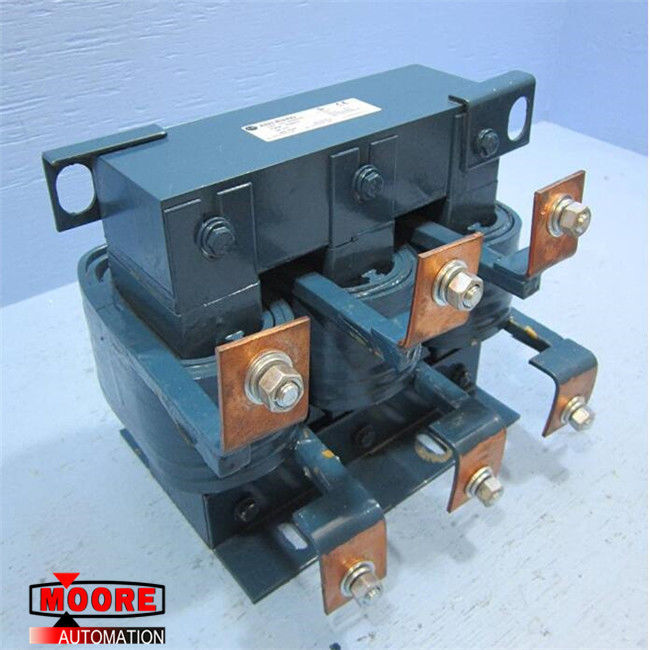

1321-3RB250-B AB AB Reactor Input/Ouput 380-480VAC
⇒ Click here for good price 1321-3RB250-B
| Brand/Manufacturer | AB/USA |
| Part Number |
1321-3RB250-B |
| Alternate Part Number | 1321-3RB250-B |
| Description | Reactor Input/Ouput |
| Dimennsions | 15.0cm x 13.6cm x 12.0cm |
| Weight | 2.0kg |
Product Details
1321-3RB250-B Specifications
Material
Enclosures:
IP11 (NEMA/UL Type 1) – Sheet steel in accordance with UL, NEMA requirements
IP66 (Open) or IP20 (Open – with finger-safe terminals)
Terminations:
1…45 amp (fundamental) Ratings – Finger guard IP20 terminal block
55…160 amp (fundamental) Ratings – Solid copper box lugs
200…400 amp (fundamental) Ratings – Copper tab terminals
401 amps and above – Copper tab terminals
General Protection
Impedance: 1.5%, 3%, or 5% based on the fundamental current ratings
Overload Rating: 200% of fundamental current for 30 minutes; 300% of fundamental current for 1 minute
dv/dt Protection: Meets NEMA MG-1, part 31
Electrical
Max. Rated Voltage: 600V AC (units with terminal blocks); 690V AC (units with box lugs or tab terminals)
Max. Switching Freq: 20 kHz
Fundamental Frequency: Line/Load - 50/60 Hz
Temperature Rise: 135 °C average
Dielectric Strength: 3000 Volts rms (4243 volts peaks)
Inductance Curve (Typical): 100% at 100% current; 100% at 150% current; 50% at 350% current (minimum)
Inductance Tolerance: ±10%
Insulation System: Class N (200 °C)
Impregnation: High bond strength solventless epoxy, 200 °C, UL94HB recognized
Environmental
Ambient Temperature: 50 °C Open Style Reactor (maximum); 40 °C Enclosed Style Reactor (maximum)
Altitude: 1000 meters (3280 feet)
