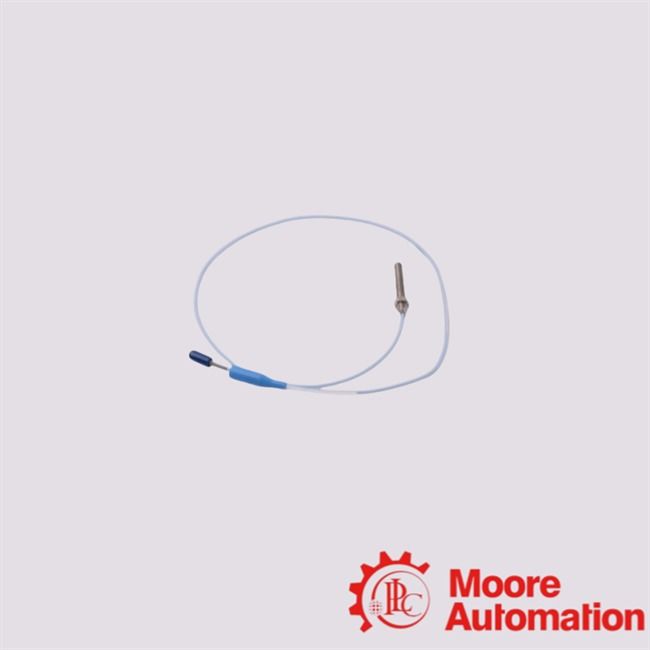

330905-00-09-05-02-05 Bently Nevada Proximity Probes
Description
The 330905-00-09-05-02-05 probe is a rugged, chemically resistant, high-speed 8 mm proximity sensor ideal for industrial applications (compressors, turbines, pumps).
It offers excellent accuracy (~±0.06 mm), wide operating temperature range, and plug‑and‑play compatibility with the 3300 XL system.
330905-00-09-05-02-05 Details
|
FAQ
|
|
1. What is the 330905-00-09-05-02-05 used for?
Answer:This proximity probe is used for non-contact measurement of shaft vibration, axial position,
or speed in rotating machinery. It is ideal for applications requiring high precision in compact spaces,
such as steam turbines, compressors, pumps, and motors.
|
|
2. What is the sensing range of the probe?
Answer:Typical sensing range is 0.25 mm to 1.75 mm (10 to 70 mils),
optimized for narrow-gap monitoring in compact installations.
|
|
3. Is the 330905-00-09-05-02-05 compatible with other Bently Nevada systems?
Answer:Yes, it is fully compatible with the 3300 NSv and 3300 XL transducer systems.
It can be used with matching extension cables and Proximitor sensors for accurate measurements.
|
|
4. What is the operating temperature range?
Answer:The probe can operate in temperatures from -51°C to +177°C (-60°F to +350°F).
Optional configurations are available for Extended Temperature Range (ETR) up to +260°C.
|
